Hey there! As a supplier of LCD Display Strips, I often get asked about the panel types of these nifty little gadgets. So, let's dive right in and break down what exactly the panel type of an LCD Display Strip is all about.

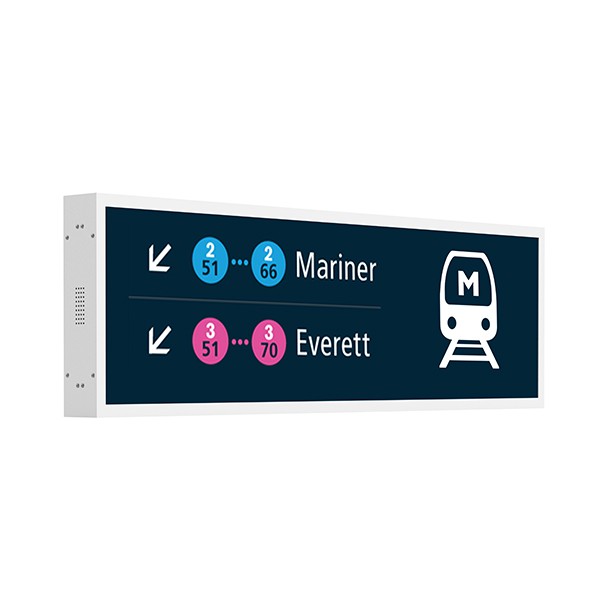

First off, what's an LCD Display Strip? Well, it's a long, narrow display that can be used for all sorts of things. You might see them on store shelves as Digital Shelf Signage, showing product prices and info. They're also great for Wayfinding Screens in big buildings, guiding people to where they need to go. And of course, our LCD Display Strip is a popular choice for many different applications.
Now, onto the panel types. There are a few main ones you should know about.
TN (Twisted Nematic) Panels
TN panels are one of the oldest and most common types. They're pretty affordable, which makes them a go - to for a lot of budget - friendly displays. The way they work is by twisting the liquid crystals between two polarizing filters. When an electric current is applied, the crystals untwist, allowing light to pass through and create an image.
One of the big advantages of TN panels is their fast response time. This means they can change the image on the screen really quickly, which is great for things like showing fast - moving animations or videos. However, they do have some drawbacks. Their viewing angles are pretty limited. If you look at a TN panel from the side, the colors can look washed out and the contrast can drop. Also, the color accuracy isn't the best compared to other panel types. But for basic applications where cost is a major factor and you don't need super - high - end visuals, TN panels can be a solid choice.
IPS (In - Plane Switching) Panels
IPS panels are a step up in terms of quality. They use a different technology where the liquid crystals are aligned parallel to the glass substrates. When an electric field is applied, the crystals rotate in the same plane.
The main selling point of IPS panels is their excellent viewing angles. You can look at an IPS panel from almost any direction, and the colors and contrast will stay pretty consistent. This makes them ideal for applications where multiple people might be viewing the display from different angles, like in a public area. The color accuracy is also much better than TN panels. They can reproduce a wider range of colors, which is great for showing vivid and accurate product images on Digital Shelf Signage.
However, IPS panels do have a couple of downsides. They're more expensive than TN panels. And their response times are generally a bit slower. So, if you're looking for a display that needs to show super - fast - paced action, an IPS panel might not be the best option.
VA (Vertical Alignment) Panels
VA panels are kind of a middle ground between TN and IPS panels. They use vertical alignment of the liquid crystals. When no voltage is applied, the crystals are perpendicular to the glass substrates, blocking light. When a voltage is applied, the crystals tilt, allowing light to pass through.
VA panels offer good contrast ratios. They can display deep blacks, which is great for making the colors on the screen pop. Their viewing angles are better than TN panels but not as good as IPS panels. They're also more affordable than IPS panels, making them a popular choice for displays where you want decent color and contrast without breaking the bank.
So, how do you choose the right panel type for your LCD Display Strip? It really depends on your specific needs.
If you're on a tight budget and just need a basic display for showing simple text or static images, a TN panel might be your best bet. For applications where multiple people will be viewing the display from different angles and color accuracy is important, like in a store or a public building, an IPS panel is probably the way to go. And if you want a good balance between cost, contrast, and viewing angles, a VA panel could be the perfect fit.
OLED (Organic Light - Emitting Diode)
OLED is a bit of a different beast. Instead of using liquid crystals, OLED displays use organic compounds that emit light when an electric current is applied. This means they don't need a backlight like LCD displays.
The big advantage of OLED is its incredible contrast ratio. Since each pixel can emit its own light, it can be completely turned off to create true blacks. This results in a very immersive viewing experience. The colors are also extremely vivid and accurate.
However, OLED displays are more expensive to produce, especially in larger sizes. They also have a limited lifespan, and there can be issues with burn - in if the same image is displayed on the screen for a long time. But for high - end LCD Display Strips where top - notch visuals are a must, OLED can be a great option.
As a supplier of LCD Display Strips, I've seen firsthand how important it is to choose the right panel type. It can make or break the performance of your display in different applications.
If you're in the market for an LCD Display Strip and you're not sure which panel type is right for you, don't hesitate to reach out. We can have a chat about your specific requirements, whether it's for Digital Shelf Signage, Wayfinding Screens, or something else entirely. We've got a wide range of options to suit different budgets and needs. So, let's have a conversation and find the perfect LCD Display Strip for your project.
Conclusion
In conclusion, understanding the panel type of an LCD Display Strip is crucial. Whether it's the budget - friendly TN panels, the high - quality IPS panels, the balanced VA panels, or the premium OLED, each has its own strengths and weaknesses. By knowing what each panel type offers, you can make an informed decision that will ensure your display performs exactly as you need it to.
If you're interested in purchasing an LCD Display Strip or have any questions about panel types, feel free to contact us. We're here to help you find the best solution for your business.
