The thickness of an LCD display strip is a crucial factor that can significantly impact its application, installation, and overall user experience. As a supplier of LCD display strips, I've encountered numerous inquiries regarding this aspect. In this blog, I'll delve into the various factors that determine the thickness of an LCD display strip, explore different thickness ranges for various types of displays, and discuss how thickness can influence the choice of an LCD display strip for specific applications.
Factors Affecting the Thickness of an LCD Display Strip
Several key factors contribute to the overall thickness of an LCD display strip. Understanding these factors can help you make an informed decision when selecting the right display for your needs.
Display Technology
The type of LCD technology used plays a major role in determining the thickness of the display strip. Traditional twisted nematic (TN) LCDs are generally thicker compared to in-plane switching (IPS) or vertical alignment (VA) LCDs. TN LCDs have a simpler structure, but they often require more space for the backlighting system. On the other hand, IPS and VA LCDs offer better image quality and viewing angles, and they can be designed to be thinner due to advancements in backlighting and panel technology.
Backlighting System
The backlighting system is another significant factor that affects the thickness of an LCD display strip. There are two main types of backlighting systems: edge-lit and direct-lit. Edge-lit backlighting systems are typically thinner because the light sources are placed along the edges of the display panel. This design allows for a more compact and lightweight display. Direct-lit backlighting systems, on the other hand, have light sources placed directly behind the display panel. While direct-lit systems can provide more uniform backlighting, they tend to be thicker due to the additional space required for the light sources.
Housing and Mounting
The housing and mounting of the LCD display strip also contribute to its overall thickness. Displays with more robust housings or complex mounting mechanisms may be thicker to accommodate these features. Additionally, the type of mounting (e.g., wall-mounted, shelf-edge, or free-standing) can influence the thickness requirements. For example, a Wall Mounted Bar Advertising Screen may need to be thinner to provide a sleek and unobtrusive appearance on a wall, while a Parking Lot Display may be able to tolerate a slightly thicker design to withstand outdoor conditions.
Additional Features
Extra features such as touchscreens, sensors, or integrated speakers can add to the thickness of an LCD display strip. Touchscreens, for instance, require an additional layer on top of the display panel, which increases the overall thickness. Similarly, sensors and speakers need space within the housing, which can contribute to a thicker design.
Thickness Ranges for Different Types of LCD Display Strips
The thickness of an LCD display strip can vary widely depending on its size, technology, and intended application. Here are some general thickness ranges for different types of LCD display strips:

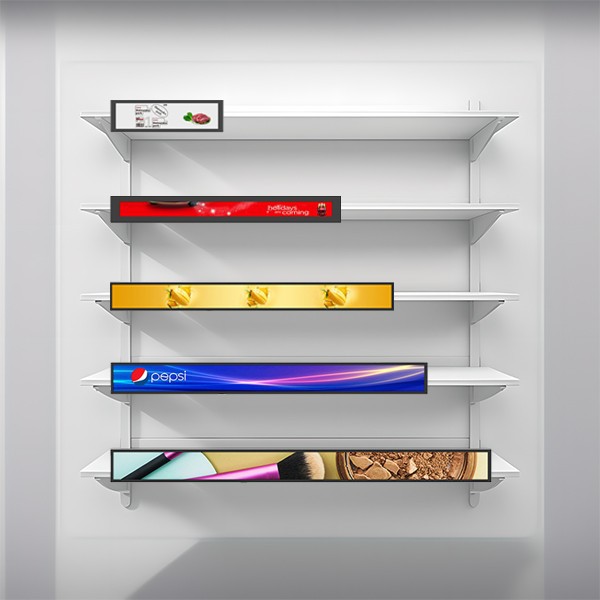

Shelf-Edge LCD Display Strips
Shelf-edge LCD display strips are commonly used in retail environments to display product information, prices, and promotions. These displays are typically designed to be thin and lightweight to fit neatly on the edges of shelves. The thickness of shelf-edge LCD display strips can range from as thin as 5mm to around 20mm, depending on the size and features of the display. For example, a small, basic Metro Screen may have a thickness of around 5 - 8mm, while a larger display with additional features such as a touchscreen or high-brightness backlighting could be 15 - 20mm thick.
Wall-Mounted LCD Display Strips
Wall-mounted LCD display strips are often used for advertising, information dissemination, or decorative purposes in commercial spaces. These displays can vary in thickness depending on their size and the technology used. Smaller wall-mounted displays (e.g., less than 20 inches) may have a thickness of around 10 - 20mm, while larger displays (e.g., 40 inches or more) can be 20 - 50mm thick. The thickness of wall-mounted displays can also be influenced by the type of mounting bracket used and the presence of additional features such as built-in media players or cameras.
Outdoor LCD Display Strips
Outdoor LCD display strips need to be more robust and weather-resistant than indoor displays. As a result, they tend to be thicker to accommodate features such as protective enclosures, high-brightness backlighting, and thermal management systems. The thickness of outdoor LCD display strips can range from 30mm to over 100mm, depending on the size and level of protection required. For example, a small outdoor Parking Lot Display may have a thickness of around 30 - 50mm, while a large, high-brightness outdoor advertising display could be 80 - 100mm thick or more.
The Impact of Thickness on Application and Installation
The thickness of an LCD display strip can have a significant impact on its application and installation. Here are some considerations to keep in mind:
Space Constraints
In many applications, space is a critical factor. Thinner LCD display strips are often preferred in environments where space is limited, such as retail shelves or narrow corridors. A thinner display can also provide a more streamlined and modern appearance, which is desirable in many commercial settings. On the other hand, if space is not a major concern, a thicker display may be acceptable if it offers additional features or better performance.
Installation Ease
Thinner LCD display strips are generally easier to install, especially in tight spaces or on surfaces where a flush mount is required. They can be more easily integrated into existing structures or mounting systems. Thicker displays may require more complex installation procedures and may need additional support or reinforcement.
Aesthetics
The thickness of an LCD display strip can also affect its aesthetic appeal. Thinner displays tend to look more elegant and unobtrusive, while thicker displays may appear bulky or out of place in some environments. When choosing an LCD display strip, it's important to consider the overall design and style of the space where it will be installed.
Choosing the Right Thickness for Your Application
When selecting an LCD display strip, it's essential to consider the specific requirements of your application. Here are some tips to help you choose the right thickness:
Evaluate Your Space
Measure the available space where the display will be installed and determine the maximum thickness that will fit comfortably. Consider any constraints such as shelf depth, wall clearance, or mounting requirements.
Consider Your Budget
Thinner displays may be more expensive due to the advanced technology and manufacturing processes required to achieve a slim design. Evaluate your budget and determine whether the additional cost of a thinner display is justified by your application's needs.
Assess Your Performance Requirements
If you need a display with high brightness, wide viewing angles, or touchscreen capabilities, you may need to sacrifice some thickness to accommodate these features. Consider the trade-offs between performance and thickness and choose a display that offers the best balance for your application.
